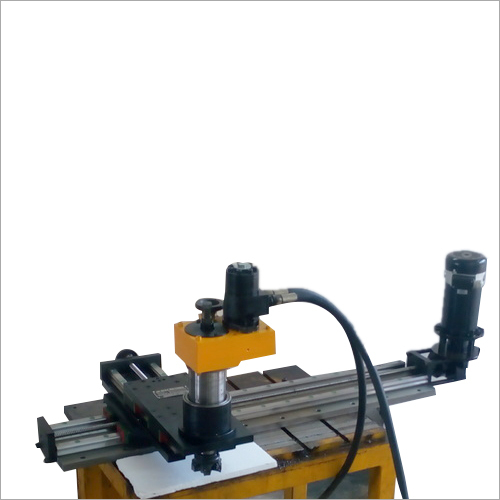

Portable industrial Milling Machine

Portable industrial Milling Machine
Portable industrial Milling Machine
Send Inquiry
Product Code : 10
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Description

Portable Milling Machine is widely utilized for the milling of large cumbersome parts, welding and in the production of versatile machinery  like stamping press. It is a three axis milling machine with characteristics like portability, durability, advance features and compact design that enables it to render efficient and effective working outputs. This machine is semi automatic and completely user friendly. Also, it serves a durable life span and allows simple installation. Customers can avail this Portable Milling Machine from us in various specifications as per demands.

Product Details :

End Mill Capacity (mm)

50mm

Face Mill Capacity (mm)

75mm

Make

Jinshaa Machines

Model Number

JSM

Power (W)

2.3 KW

Power Supply (V)

220 V SINGLE PHASE

Product Type

Milling Machine

Spindle Taper

ISO 40

Brand

JINSHAA

Spindle Taper (MM)

iso 40

Automation Grade

Semi-Automatic

Technical Specifications :

  • X stroke 980- mm LM Guides
  • Y Cross stroke 280mm LM guides
  • Z Stroke 100mm Spindle Power Hydraulic 6.5 Hp IS0 40 Female taper
  • Feed Motor 1/2 Hp Geared DC Motor ball screw
  • Machine mounting option 16 holes are provided of dia 14 at a pitch of 120mm to mount the machine secularly and rigidly
  • Manufactured By Jinshaa Machines
