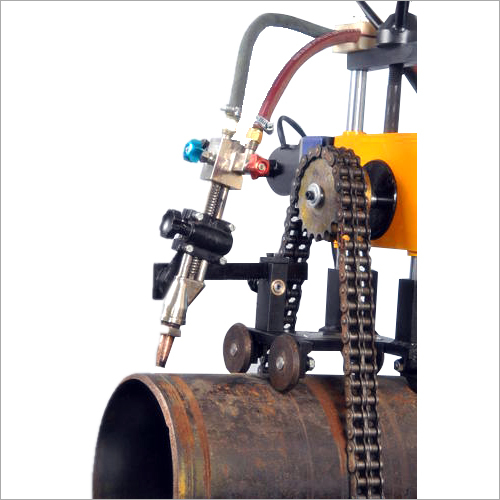

Pipe Gas Cutting Beveling Machine

Pipe Gas Cutting Beveling Machine
Pipe Gas Cutting Beveling Machine
Send Inquiry
Product Code : 13
Brand Name : Jinsha
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Control System
  • Manual
  • Voltage
  • 220V SINGLE PHASE Teraampere (TA)
Product Description

The Auto Pipe Gas Cutting Machine manufactured by us is renowned across the country for its optimum quality, functionality and energy-efficiency. In order to sustain harsh site conditions, the machine is made using steel. For easy accessibility to the clamping chain, the machine uses the available chains, rather than specially designed chains.

Machine Operation:

  • Select proper clamping chain as per diameter
  • Slide the machine along with chain on to the pipe
  • Tighten the nut on top to tighten the chain
  • Adjust cutting torch as per requirement
  • Start gas supply to ignite torch
  • Adjust flame length with the height adjustment knob
  • For cutting the pipe, start push the toggle switch to forward
  • The Machine starts indexing round on the pipe diameter by moving the knob on the drive the indxing speed can be controlled
  • As the machine rotates along the diameter, the torch cuts the pipe
  • Beveling can also be done by adjusting torch angle
  • Bevel degree can be varied from vertical  to max 45o, as can be ascertained by the engraved degree dial on the machine
  • Fixed length chains are supplied readily with machine for standard pipe diameters
  • Machine mounts on Pipe OD and on rotating handle indexes around the pipe simultaneously cutting the pipe
  • Looking for Dealers in Chennai


Technical Specifications:


  • Min OD 100 mm to 2000 mm OD
  • Horizontal movement of the torch is 125 mm
  • Vertical movement of torch is 70 mm
  • Weight of the machine is 15 kg
  • Indexing Motor 40 W PMDC
  • Supply Voltage 220 V Single Phase

List Of customers

1)Super therm Pune 2) Flashforge Viskhapatnam 3) Corrtech International Ahmedabad 4) Gpysum India Ltd Guwhati5) Thermal Links Pune 6) Jagganathan Engg Works Trichy 7) N Pipe Solution Pvt Ltd 8) Hitech Engg Baramati 9) A R Engg Satara 10) Afcons Infrastructure Bharuch 11)Megha Infra Hyderabad 12 ) Sujata Constructions 13) Tribo Tech Trichy 14) BMV Steels Hathars UP 15) Welspun Gujrat(Auto)16) Gaytech Engg Baroda 17) Lotus Engineers Pune 18)IOT PROJECTS Nagpur Nagpur19)Kumar.P.P. 1 2011- 2012 23) Gujrat Infra Pipes Pvt Ltd 24) Novatech Engg Nasari 25) Pioneer Diligence Bhopal26) Shree Shyam Gas Agency Chattisgarh AUTO 1 2012-201327) Corrtech Trenchless Delhi 1 2013-201428) East end technologies pvt ltd bhuvaneshwar 1 2013-201429) SPRY Engineering Trichy Auto 1 2014-201530) Bemco Steel Ltd SAUDI ARABIA 1 2014-201531) Asian Engg and Construction Vadodara 1 2014-201532) R & H Vadodara33)Mann Industries Indore34) Sidhu Engg Paradip Orissa35) Sujatha Constructions Andhra Pradesh 26) Trenchless Delhi 2016-17 27) Mastek Engg Chennai 2016-17

Product Details :

Model

jsm3000

Capacity

2m

Pipe Size

2m

Drive

220v single phase

Weight

17 kg

Chain Type

duplex

Technical Specifications :

  • Min OD 100 mm to 2000 mm OD
  • Horizontal movement of the torch is 125 mm
  • Vertical movement of torch is 70 mm
  • Weight of the machine is 15 kg
  • Indexing Motor 40 W PMDC
  • Supply Voltage 220 V Single Phase
Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T), Cash in Advance (CID)
  • Packaging Details
  • WOODEN BOX
  • Main Export Market(s)
  • Middle East
